There are many software process models that can be implemented by software engineers. Some famous process models are the waterfall model, spiral model, iterative model, and agile model, etc. In other tutorials, we will also learn about these topics. Here our main focus is to discuss the incremental model. So, let’s start our discussion about the incremental model.
According to the incremental model, the software is divided into separate modules(components)and each of these modules has a separate set of waterfall activities including requirements gathering and analysis, design, implementation, deployment, and maintenance.
When any component is ready, then the component is delivered to the customer and when remaining components become ready than delivered to the customer one by one by integrating new components with old once.

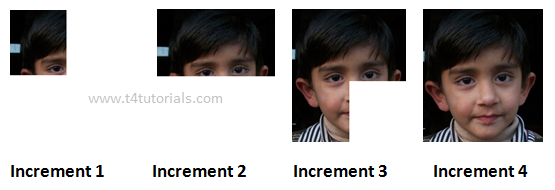

Example of the incremental model (Just for understanding)
In this daily life example, we want to draw a picture, first, we draw the first part of the picture as shown in increment 1, Similarly after completing the first part of the picture we have to add one another part of the picture labeled as increment 2 in the above picture. Similarly, we complete this picture in four increments.
A case study of incremental model
Suppose we want to develop a web-based social network with the following functionalities;
The user should signup for the system.
The user should log into the system and can send or accept the friend request.
How can use the incremental model in this scenario;
Solution:

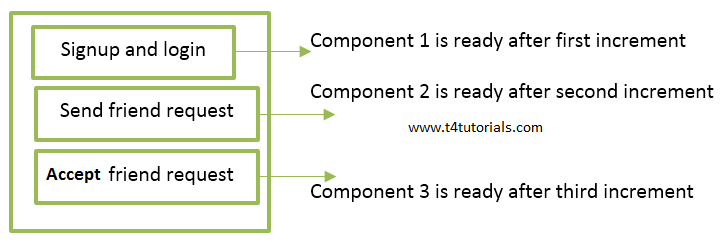

We need to convert this system into separate components;
Component 1: Sign up and log in
Component 2: Send Friend request
Component 3: Accept friend request
≡ Now, when we start our activities, then we can start with component 1(signup and login). This component undergoes the phases of requirements gathering and analysis, design, implementation, deployment, and maintenance. When this component is ready, we deliver this one component to the customer.
≡ After that, we add or increment another component 2 that sends the friend request. This component undergoes the phases of requirements gathering and analysis, design, implementation, deployment, and maintenance. When this component is ready, we deliver this one component to the customer.
≡ After that, we add or increment another component 3 that accepts a friend request. This component undergoes the phases of requirements gathering and analysis, design, implementation, deployment, and maintenance. When this component is ready, we deliver this one component to the customer.
Result: In this case study we observe that one system is produced and delivered to the customer in increments.
What are the advantages of an incremental model?
- Customer feedback is received after the delivery of each component.
- Risk of requirement changes is reduced
- More flexible
- Easy to test and debug
- Give quick results
What are the disadvantages of an incremental model?
- Needs a proper plan to integrate the components
- Needs a proper design to integrate the components
- More expansive as compared to the waterfall model.
When to use the incremental model?
- When major requirements are understood but some requirements can evolve within the passage of time.
- When product launch in the market is getting late.
- When a customer has no problem with the budget but he demands more and more quality in software.
Difference between incremental model and Iterative Model
Let’s see the Difference between the Iterative and incremental models with a diagram.
Difference between incremental model and waterfall Model
Let’s see the Difference between the incremental and waterfall model with a diagram.
| INCREMENTAL MODEL | WATERFALL MODEL |
| Detailed documentation is not strictly Required in Incremental model. | Detailed documentation is strictly Required in Waterfall model. |
| Returning to previous stage/phase is allowed in waterfall model. | Returning to previous stage/phase is never advice in waterfall model. |
| Testing is done after every iteration of phase in incremental model. | Testing is done after completion of all coding phase in waterfall model. |
| Low risk in incremental model. | More risk in waterfall model. |
| Incremental model can’t handle large project. | Waterfall model can’t handle large project. |
| Early stage planning(not Extremely) is necessary in Incremental model. | Early stage planning(Extremely) is necessary in Waterfall model. |
| Delivery time is short. | Delivery time is not short. |
| There are multiple development cycles take place in incremental model. | There is only one development cycles in waterfall model. |
| Cost of incremental model is Low. | Cost of Waterfall model is Low. |
| Flexibility to change in incremental model is Easy. | Flexibility to change in waterfall model is difficult. |
| Overlapping of phases is possible in waterfall model. | Overlapping of phases is not possible in waterfall model. |
| Large team is not required in waterfall model. | Large team is require in waterfall model. |
Comparison of incremental model and spiral model
| Properties | Incremental | Spiral |
| Objectives | Rapid Development | High Assurance |
| Planning in early stage | Yes | Yes |
| Returning to an earlier phase | Yes | Yes |
| Handle Large-Project | Not Appropriate | Appropriate |
| Time-Frame | Long | Long |
| Working software availability | At the end of every iteration | At the end of every iteration |
| Risk Involvement | Low | Medium to high risk |
| Software Team size | Not Large Software Team | Large Software Team |
| Customer control over administrator | Yes | Yes |
| Maintenance | Promotes Maintainability | Typical |
| Time Duration | Very long | Long |
| Re-usability | To some extent | To some extent |
| Framework Type | Linear + Iterative | Linear + Iterative |
| When Testing? | After every iteration | At the end of the engineering phase |
| Maintenance | Maintainable | Yes |
| Detailed Documentation | Yes but not much | Yes |
| Overlapping Phases | Yes | No |
Comparison of incremental model and RAD
| Properties | Incremental | Rad |
| Objectives | Rapid Development | Rapid development |
| Planning in early stage | Yes | No |
| Returning to an earlier phase | Yes | Yes |
| Handle Large-Project | Not Appropriate | Not Appropriate |
| Time-Frame | Long | Short |
| Working software availability | At the end of every iteration | At the end of the life cycle |
| Risk Involvement | Low | Low |
| Software Team size | Not Large Software Team | Small Software Team |
| Customer control over administrator | Yes | Yes |
| Maintenance | Promotes Maintainability | Easily Maintained |
| Time Duration | Very long | Short |
| Re-usability | To some extent | Yes |
| Framework Type | Linear + Iterative | Linear |
| When Testing? | After every iteration | After completion of development |
| Maintenance | Maintainable | Easily Maintainable |
| Detailed Documentation | Yes but not much | Limited |
| Overlapping Phases | Yes | Yes |
Comparison of incremental model and Waterfall
| Properties | Incremental | Waterfall |
| Objectives | Rapid Development | High Assurance |
| Planning in early stage | Yes | Yes |
| Returning to an earlier phase | Yes | No |
| Handle Large-Project | Not Appropriate | Not Appropriate |
| Time-Frame | Long | Very Long |
| Working software availability | At the end of every iteration | At the end of the life-cycle |
| Risk Involvement | Low | High |
| Software Team size | Not Large Software Team | Large Software Team |
| Customer control over administrator | Yes | Very Low |
| Maintenance | Promotes Maintainability | Least |
| Time Duration | Very long | Long |
| Re-usability | To some extent | Least possible |
| Framework Type | Linear + Iterative | Linear |
| When Testing? | After every iteration | After completion of development phase |
| Maintenance | Maintainable | Least Maintainable |
| Detailed Documentation | Yes but not much | Necessary |
| Overlapping Phases | Yes | No |
Hopefully, now you are able to answer the following questions;
- What is an incremental model?
- What are the disadvantages of an incremental model?
- What are the advantages of an incremental model?
- When to use the incremental model?
Frequently Asked Questions (FAQ)
Question: What are example of software that use incremental model?
Answer: Approximately, every software that provides updates time to time.
Question: The unified process is an interative and incremental approach to developing software. True/False
Answer: True
Question: Incremental development is the most effective approach for developing business software systems
Answer: True
Conclusion
An incremental model is best when you want to develop software with different increments.
More MCQs on Software Process Models
Case studies for Software process models
Try to guess the software process model for the following case studies.
The Evolutionary model is a combination of incremental and iterative models.
